Logitech Rally Bar Huddle
Logitech Rally Bar Huddle
All-in-One Video Bar for Huddle and Small Rooms
Features
- Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with field replaceable front cover
- Device Management: Logitech Sync Displays Supported: 1 (2nd display support is coming soon)
- Display Resolution: 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Designed to deliver video meetings with ease, Rally Bar Huddle is quick to set up in person or remotely, simple to manage, and easy to integrate with your existing video conferencing solutions through CollabOS.
Rally Bar Huddle works with most platforms you use to connect hybrid teams, ensuring an effortless experience from the home to the office, and everywhere in between.

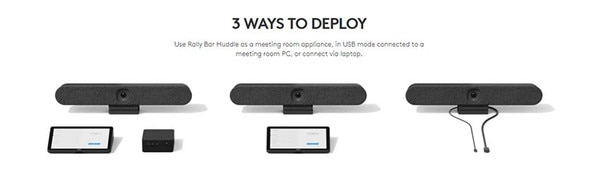

Combine Rally Bar Huddle with Tap IP and Tap Scheduler to make it easy to schedule, join, and participate in video meetings.
Camera
- Digital Pan: ±48° at 4x zoom
- Digital Tilt: ±32° at 4x zoom
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80°
- Resolution: 4K
- Driver: 2.2 in(55 mm) with bass reflex enclosure and patented suspension design
- Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
- Rated Power: 8W
- THD at 1W, 1kHz: <2%
- Speaker Sampling Rate: 48KHz
- Impedance: 4 Ohms
- Frequency Response: 90Hz – 16kHz
- Sensitivity: -36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: Up to 23 ft (7m)
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- HDMI Out: 1
- HDMI In: 1
- USB: 1x Type A USB 3.1, 1x Type C USB 3.1
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- Bluetooth: Bluetooth® Low Energy
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 2.1A
- Power Supply Dimensions: 4.48 in (114 mm) x 1.85 in (47 mm) x 1.27 in (32.3 mm)
- DC Cable: 5 ft (1.5 m)
- AC Cable: 3.3 ft (1 m)
- HDMI 1.4 Cable: 6.5 ft (2 m)
- USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
